Runway Markings Explained

As pilots taxi to or from takeoff or landing, especially at major commercial airports, markings on the taxiways and runways provide important guidance.

Under normal operations, this guidance is mandatory, so pilots must recognize and know what these markings mean.

Here we describe the runway markings in approximately the same sequence the pilot would see them when preparing to takeoff.

Related Article5 Best Low Time Pilot Jobs With 250 Hours

Airport Overview

In the aerial view of John F. Kennedy International Airport (Figure 1), we can see examples of most major portions of the airport.

Figure 1. Basic Airport Layout (Partial View of JFK International)

There are the parking ramps, taxiways, and runways.

Movement in the parking area is controlled either by Ground Control, or at larger airports local ramp controllers.

When an airline aircraft is ready to leave the gate, the crew gets permission for “pushback.” The aircraft is guided by ground personnel away from the gate to a position where the pilots can taxi forward safely.

General aviation aircraft typically call Ground Control for taxi instructions.

During this period, the pilot has received taxi instructions as to which runway to use and which taxiways to take to get to the runway.

To guide crews along this route, taxiways and runways are marked with standardized markings painted on the paved surfaces and further guided by signs.

Taxiways and any other non-runway surfaces are painted with yellow markings, while only runway surfaces are marked in white.

To get to the runway, crews move along the assigned taxiways, following the yellow center stripe and all ground control instructions and taxiway signs until they reach the hold line at the assigned runway.

Along the way, crews must stop at all hold lines unless the ATC Ground Control clears the aircraft to move.

Related ArticleInstrument Proficiency Check (IPC): 4 Things You Need To Know

Runway Features and Markings

Assume the aircraft will taxi onto the runway and turn left to move into the takeoff position (Figure 2).

Figure 2. Aircraft Taxiing into Position for Takeoff (We know it is taxiing because it has crossed the hold line.)

Blast pad / Stop Ways

First, to the aircraft’s right is the blast pad (Figure 3): the purpose of blast pads is two-fold:

1. Jet exhaust is very harsh, and over time can damage the area surrounding the runway (i.e., the grass, dirt, gravel, etc.)

Blast pads protect the area immediately behind the runway threshold.

2. During an emergency, like a rejected takeoff (from the opposite direction), the blast pad becomes a stop way of additional surface on which to slow and stop the aircraft.

Figure 3. Blast Pad or Stop way Area Marked with Yellow Chevrons

Blast pads may be constructed of an Engineered Materials Arresting System (EMAS) using materials that crush under the weight of an aircraft and “gently” slow and stop and aircraft that runs off the main runway surface.

Other Facts About Blast Pads

  • Aircraft are NOT allowed to taxi, takeoff, land or otherwise use blast pads for normal operations.
  • With that said, they CAN be used in an emergency.
  • Blast pads can be as short as 50 ft., and more than 200 ft. long, depending on the airport.

Demarcation Bar

The demarcation bar is a yellow stripe that separates the displaced threshold from the blast pad, stop way, or taxiway that precedes the displaced threshold.

A demarcation bar is always associated with a displaced threshold.

displaced threshold

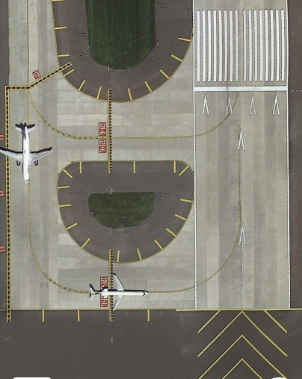

Figure 4. The yellow demarcation line separates the blast pad, taxiway, or a section of runway from a displaced threshold.

Other Facts About the Demarcation Bar

A demarcation bar is 3 ft (1 m) wide.

The demarcation bar is yellow and is not on or part of the runway.

Related Article14 Taxiway Markings, Signs, and Lights Explained By An Actual Pilot

Displaced Threshold

A displaced landing threshold is located some distance from the beginning of the runway surface.

Figure 5. A Displaced Threshold Showing the Displaced Threshold Bar

The displaced threshold is used to move an aircraft’s final approach or glide path down the runway so that aircraft will maintain a higher altitude approaching the runway, either for noise reduction or obstacle clearance.

Other Facts About Displaced Thresholds

A displaced threshold will reduce the available runway available for landing.

Aircraft taking off may use the portion of the runway before the displaced threshold.

Displaced Threshold Bar

A 3-feet wide white displaced threshold bar indicates the beginning of the landing portion of a runway (Figure 5).

Other Facts About Threshold Bar

The portion of the runway before the displaced threshold may be used for takeoff or roll-out when landing from the other direction.

White Arrows and Arrow Heads

White arrows (or arrowheads), beginning at the approach end of the runway, along the centerline, indicate that there is a displaced threshold beyond which aircraft should land (Figure 5).

Other Facts About White Arrows and Arrowheads

Aircraft taking off may use this portion of the runway.

Arrowheads are placed across the runway just prior to the displaced threshold bar to further identify the displaced threshold.

Related ArticleAirline Transport Pilot (ATP) Certificate: 4 Things You Need To Know

Holding Position Markings

At controlled airports, hold marks on taxiways indicate the position where an aircraft most stop when NOT cleared to cross or enter the runway for takeoff, or the position to stop and wait for other aircraft to take off or land at an uncontrolled airport.

Other Facts About Hold Markings

There are two types of Hold markings (Figure 6):

(1) The first hold line (Detail 1, Figure 6) may be used when the airport is operating under VFR conditions and landing aircraft are NOT relying on the ILS for landing guidance.

Pilots must stop before the hold lines unless cleared by ATC to cross or turn onto the runway.

Aircraft exiting the runway do not have to stop at the hold lines.

At uncontrolled airports, pilots are expected to stop before the hold line until the runway is clear to cross, or to turn onto, the runway.

(2) The second hold line is the ILS Holding Position Markings (Detail 2, Figure 6) used when aircraft are actively using the ILS for landing guidance (aircraft too close to the runway can interfere with the ILS guidance signal).

holding position markings
Figure 6. Holding position markings for Normal Operations and ILS Operations. (AIM, page 2-3-16)

Threshold Markings

Runway threshold markings are white stripes running parallel to the centerline of the runway just beyond the actual runway threshold (or displaced threshold) that help identify the beginning of the landing runway (Figure 7).

runway markings at a major airport
Figure 7. Basic Runway Markings at a Major Airport (Runway 4 Left, JFK, New York)

Other Facts About Threshold Markings

At larger airports, the number of stripes in the threshold markings may indicate the width of the runway: for example, four stripes indicate a runway width of 60 feet, while eight stripes indicate a runway 100 feet wide.

In some instances, the landing threshold may be relocated or displaced.

While landing on the threshold markings is not prohibited, it is not usually a good practice.

Aiming Point Markings

At airports with threshold markings, there may be aiming point markings: two wide, white, parallel areas that provide a visual reference for most aircraft. This is the point to aim for rather than the threshold markings.

Touchdown Point Markings

For large airline aircraft, if the pilots use the “aiming point” accurately, due to the length of the aircraft, the wheels will touch down on or near the touchdown point.

Figure 8. Diagram of a runway showing the threshold marking, runway designation, and the aiming point.

Runway Designation Markings

Runway 13 right at JFK International Airport. Image: Google Maps

Each runway is identified by a number that corresponds to the magnetic alignment of the runway, shown to the nearest whole tenth of the magnetic alignment of the runway.

Therefore, an aircraft approaching runway 20 would be flying a heading of approximately 200 degrees magnetic (the actual magnetic alignment might be anything from 196 to 205 degrees magnetic).

Other Facts About Runway Designation Markings

A Runway identified as “21” would be aligned approximately 210 degrees (210°), and the opposite end of the runway would be Runway 3 (210° – 180° = 30°).

When there are two parallel runways, they will be marked with an “R” or and “L” indicating the “right” or “left” runway as viewed by the pilot approaching the runways.

Pilots must ensure they understand precisely which runway they are cleared to land on; at busy airports arriving aircraft may be flying parallel to each other, landing at nearly the same time on parallel runways.

Runway Centerline

The runway centerline is simply a white stripe down the middle of the runway.

Other Facts About the Runway Centerline

It provides visual guidance for alignment with the runway and following the line provides assurance that aircraft wheels will not roll off the edge of the runway pavement.

It is also an effective tool for flight instructors and examiners for evaluating a pilot’s landing proficiency!

Runway Edge (Side Stripe) Lines

Continuous side stripes provide a visual reference for the edge of the runway pavement and the abutting runway shoulder or material.

Conclusion

Runway markings are consistent from one airport to another, especially airports that are certified for commercial aircraft traffic.

The markings for different runway features have been standardized for many years.

Once familiar with these standardized marking a pilot will have no difficulty understanding when and where to stop and hold position, and how to plan takeoffs and landings, or, the next time you are flying on an airline, how to impress that attractive passenger next to you.

The best reference for any and all airport markings is the current Airman’s Information Manual, Chapter 2, Section 3,  or Airfield Standards, both available online.
